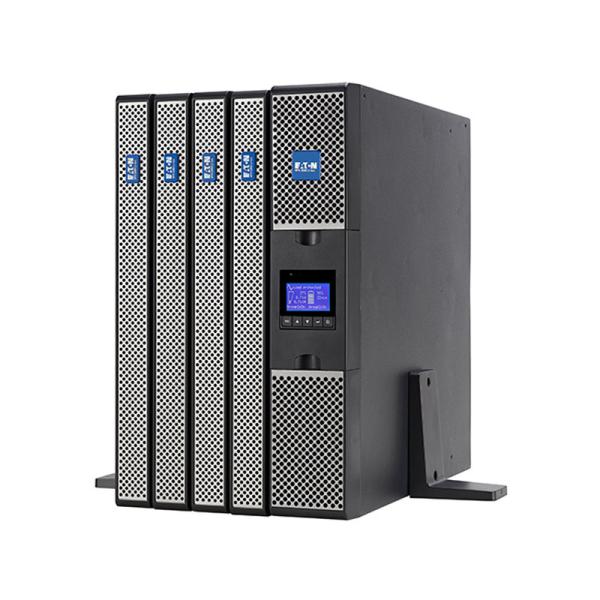

Eaton 9PX 3000VA 3000W 2U Online RT UPS 9PX3000IRT2U
The Eaton 9PX 3000VA 3000W 2U Online RT UPS (Uninterruptible Power Supply) is a high-performance power protection solution designed for small to medium-sized IT environments, including servers, storage systems, networking equipment, and other critical devices.
This UPS provides 3000VA/3000W of power capacity and is designed to deliver reliable and consistent power to your equipment, even in the most demanding environments. The 2U form factor makes it easy to install and integrate with your existing IT infrastructure.
The 9PX3000IRT2U features an online double conversion topology, which ensures that power is always clean and consistent, even when the input power is unstable. It also includes an automatic bypass feature, which allows for continuous power to your equipment even in the event of a UPS malfunction or overload.
The UPS comes with an intuitive LCD display that provides real-time information on the status of the UPS, including battery runtime, load capacity, and input/output voltage. Additionally, the 9PX3000IRT2U is equipped with advanced management capabilities, including remote management and monitoring, which makes it easy to manage the UPS from anywhere in the world.
Overall, the Eaton 9PX 3000VA 3000W 2U Online RT UPS is a reliable and efficient power protection solution that delivers high-quality power to your critical IT infrastructure, ensuring that your equipment remains up and running, even in the event of a power outage or other power-related issues.
Eaton 9PX UPS, 3000 VA, 3000 W, Input: C20, Outputs: (8) C13, (2) C19, Rack/tower, 2U
Features
- Double conversion topology
- Sine Wave
- Constantly monitors power conditions and regulates voltage and frequency
- First UPS in its class to provide Unity power factor (VA=W)
- Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
- Internal bypass allows service continuity in case of UPS fault
- Next-generation graphical LCD display
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
- Meter energy consumption (down to the managed outlet groups)
- Hot swappable batteries
- Advanced Battery Management (ABM) technology to increase battery lifetime
- Long backup time with up to 4 optional EBM
Technical Specification
Product: Eaton 9PX3000IRT2U
UPS topology: Double-conversion (Online)
Output Waveform: Sine wave
Output power capacity: 3000 VA
Output power: 3000 W
AC outlet types: 8 x C13 coupler, 2 x C19 coupler
Input Power plug: C20 coupler
AC outlets quantity: 10 AC outlet(s)
Battery technology: Sealed Lead Acid
Battery Quantity: 6
Battery Rating: 12 V / 9 Ah
Max Number of external Battery modules: 4x external hot-swappable battery modules
Typical backup time at half load: 9.5 min
Form factor: Rackmount/Tower
Product colour: Black/silver
Rack capacity: 2U
In the Box:
-
UPS
-
Input cable
-
(2) IEC-IEC output cables
-
USB cable
-
Serial cable
-
(2) brackets for 19’ mounting
-
(2) Rack-mounting kit
-
(2) Supports for tower mounting
-
Cable locking system
-
Safety instructions
-
Quickstart guide
